Solar Panel
​
Included:

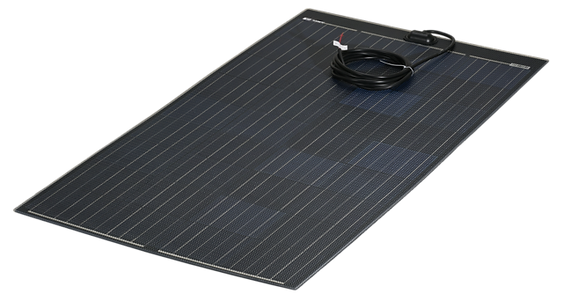

Dometic Lightsolar NDS Energy Semi-Flexible Solar Panel 12V 160W
​
-

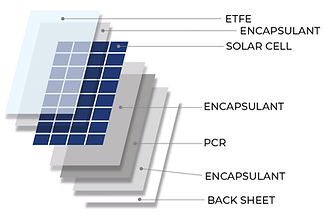

Built for light weight, low profile, and toughness. Monocrystalline cells (≈18.75% efficiency) are embedded in a 7-layer stack.
-
ETFE top layer: Highly weather- and corrosion-resistant with a self-healing surface that reforms after minor scratches (branches, hail, scuffs), maintaining light capture.
-
The aluminium backing improves heat dissipation and structural strength.
-
Junction & cabling: The standard version features an aerodynamic junction box with a 3 m cable and bypass diodes to mitigate shading losses.
-
Flat Back Junction Box version: Features an entirely flat face; cable exits on the rear. Uses laminated diodes in the frame and a compact Ø30 mm round rear box for a secure, low-profile connection.
​
​​​​​SmartSolar MPPT 100/20 Charge Controller
​​​​​
-
Bluetooth built-in: Set up, monitor, update, and sync via the Victron app.
-
VE.Direct port: Wired data link to GX devices or a PC.
-
Ultra-fast MPPT: Up to ~30% better than PWM and ~10% better than slower MPPT units in changing light.
-
Load output with BatteryLife: It prevents overdischarge and intelligently manages cut-off/reconnect to ensure regular near-100% recharges, extending lead-acid life.
-
Programmable charging: Custom charge profiles; day/night timing and light-dimming options.
-
Temperature compensation: An internal sensor adjusts absorption/float voltages; external voltage and temp sensing are optional via Smart Battery Sense or BMV-712 Smart.
-
Deep-discharge recovery: Initiates charging even from 0 V (if cells aren’t permanently sulfated or damaged) and auto-reconnects Li-ion batteries with a BMS disconnect.​​​
Scanstrut DS-H10-BLK Horizontal Cable Seal
​
-
Watertight (IP68): Keeps cable passthroughs fully protected from water.
-
UV-stable construction: Tough plastic resists sun damage and weathering.
-
Horizontal entry design: Routes cables through surfaces at a horizontal angle while maintaining the seal.
-
Secure install: Screw-mounted for a durable, long-term fit in harsh environments.
​
